Digital 7 Inch LCD Color Screen Monitor Display with Foldable Stand Support AV/NBC Input Portable Computer Monitor（CN Stock)
Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 22.53
Please select specification
Color:
Black
Quantity:
Shipping fee
$
Quick Details
Product Code：
QSV9818EU
OEM：
Refuse
Sample:
Available
Port:
Ningbo
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
800 piece per day
Quick Details
Shipping fee
Shipping fee

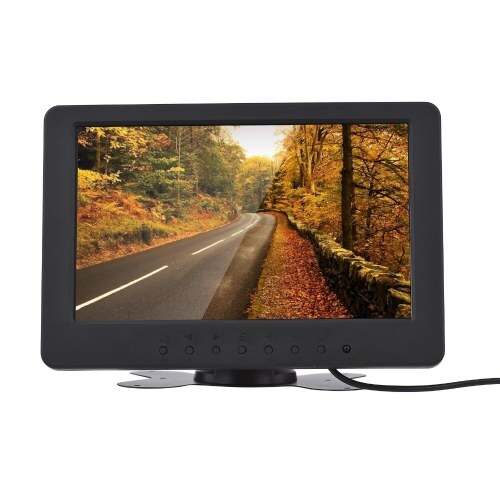

This product is a monitor display which suitable for many fields. Simple body design with bracket, mini and portable. High-definition color screen display, clear images and delicate pictures. Support AV and BNC input, which can be used for DVD and professional security equipment connection.
Feastures:

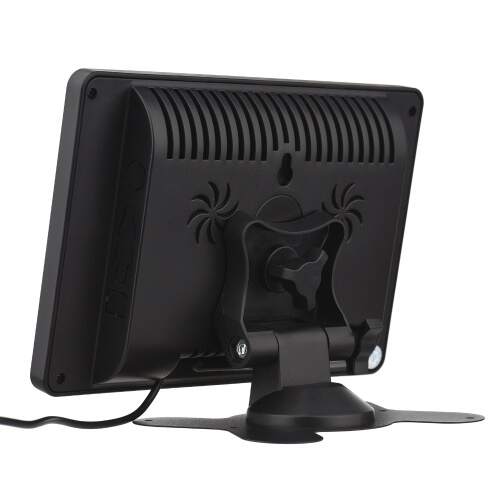

Material and Design: The shell is made of plastic material IBS, LCD screen TFT, PBC material FR4. Simple and stylish body design with folding bracket, lightweight and portable.
High-definition Color Screen: It adopts 7-inch high-resolution(1024*600)TFT LCD screen, the image is clear and delicate, and the colors ars bright.
AV Input: The monitor supports AV input, which is used to connect DVD players and other equipment. Only the video playback, no sound playback function.
Support BNC Input: It is used to support connection of professional safty monitoring equipment to reduce mutual interference of signals and achieve better signal effects.
Application Areas: Widely used in mornitoring, microscopes, industrial equipment, vehicle monitoring, digital TV, satellite TV, engineering vehicles and aerial photography, etc.
Specifications:
Item Type: Monitor Display
Model: S703
Panel Size Aspect Ratio: 7 inch 16:9
Material: Plastic IBS, PBC
Color: Black
Power: DC12V
Video Input: 1Vp-p CVBS
Resolution: 1024*600
Effective Viewing Area: 154.08(H)*86.58(H)mm
Viewing Angle: 120°(H)*100°(V)
Brightness: 200cd/㎡
Contrast: 300:1
Response Time: 12ms
Operating Temperature: 0-40℃
Monitor Size: 18.6*12.4*2.7cm/7.32*4.88*1.06in
Monitor Weight: 303g/10.69oz
Package Size: 20.3*13.1*10.3cm/7.99*5.16*4.06in
Package Weight: 601g/21.20oz

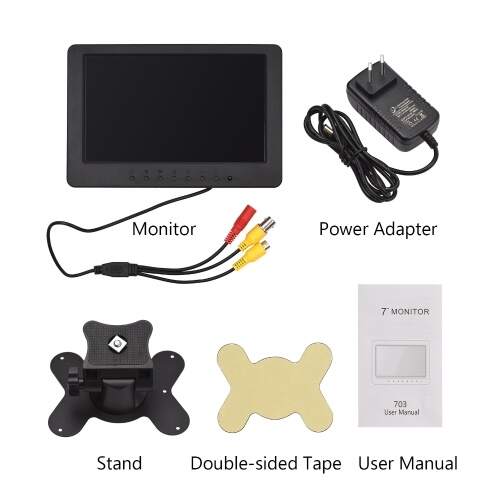

Packing List:
1* Monitor
1* Foldable Stand
1* Double-sided Adhesive Sticker
1* Power Adapter
1* User Manual
