Digital XDuoo XD05 BASIC Hi-Fi Headset Amplifier Digital Audio Terminal AK4490 USB DAC Headphone（CN Stock)
Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 125.46
Please select specification
Color:
Black
Quantity:
Shipping fee
$
Quick Details
Product Code：
QSV8387
OEM：
Refuse
Sample:
Available
Port:
Ningbo
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Shipping：
Support Express · Sea freight · Land freight · Air freight
Supply Ability：
800 piece per day
Quick Details
Shipping fee
Shipping fee

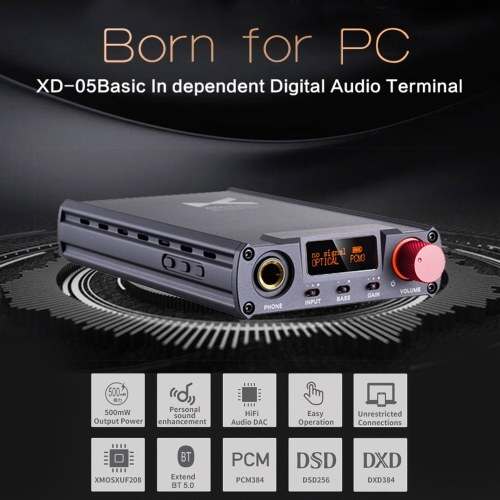

With OLED display screen, it can display the working status of the product in real time.
AK4490 DAC decoding chip is adopted, which has better decoding performance and supports native DSD, DXD and PCM signals.
The built-in filter circuit and high-efficiency power conversion circuit optimize the power supply design through LDO circuit and separately supply power to decoding chip, LPF, ear amplifier, XMOS and digital receiving chip.
The ear amplifier adopts OP+BUF architecture, with strong driving ability and great dynamics.

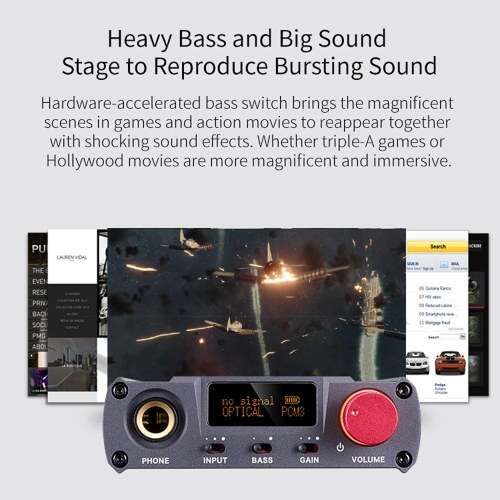

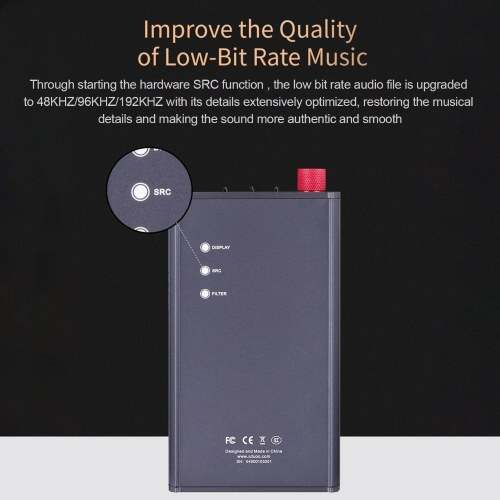

External bass lift switch, three-stage gain switch and SRC adjustment key can meet different requirements.
Specification:
Name: Headset Amplifier
Power Source: 3.7V 4000mAh rechargeable lithium polymer battery
Screen: 0.91 inch OLED screen
Output power: 500mW (32Ω load)
Frequency Response: AMP:10Hz-100KHz (+0.5dB)
USB/SPDIF: 20Hz-20KHz (+0.5dB)
USB PCM:16-32Bit/44.1K-384KHz
DSD:DOP/NATIVE mode, DSD64-256 (Bit/2 .8M-11.2M)
DXD:24-32Bit/352.8K-384KHz
OPT/COA PCM:16-24BIT/44.1K-192KHz
Gain: +6/9/16dB
Bassboost: 0/+6dB
S/N: 115dB
CROSSTALK: ≥75dB
Package size: 17*11.7*5.5cm
Package weight: 520g
Package List:
1 * XD05 Basic
1 * Type-C USB Cable
1 * Type-C to Type-C USB OTG cable
1 * Type-C to Micro USB OTG cable
1 * 6.5 to 3.5 Converter
10 * Rubber Feet
1 * Magic Stick
1 * User Manual
